Due to the unavailability of Graphic Cards since September, we can no longer accept new orders for PCs. We are completely backlogged in orders, have inventory for orders piling up, and can no longer afford to take on new orders that will potentially just sit around. Until further notice, the Blue Gem PC Store is now closed until market conditions improve.

Gem S9 – Epyc 3U Rackmount Server

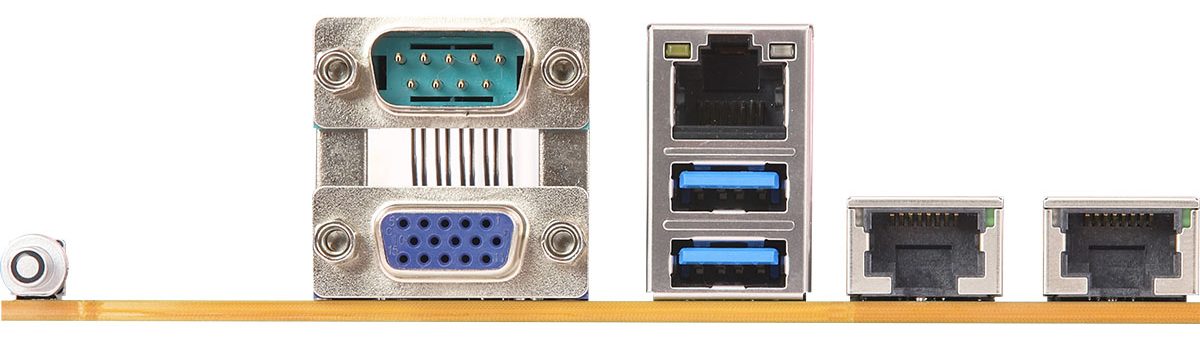

128-Core Epyc (Dual Socket) Config Rear Ports

Galaxy Class Epyc processor based rack server

System Board and Case Specifications

  • Case: SUPERMICRO CSE-835TQ-R920B
  • Font Panel: 2x USB 2.0

EPYC SP3 Single Socket (8 to 64 core config)

  • Mainboard: SP3 ATX (ASROCK RACK ROMED8-2T Mainboard)
  • Wi-Fi: None
  • Bluetooth: None
  • LAN: 2 x RJ45 10G base-T by Intel X550-AT2, 1 x RJ45 Dedicated IPMI LAN port by RTL8211E
  • Audio: None
  • Storage: 2x M.2 PCI-E 4.0, 9x SATA III 6Gbps (from 2 x mini SAS HD and 1 x SATA DOM port)
  • Expansion: 7x PCI-E 4.0 x16

EPYC SP3 Dual Socket (128 core config)

  • Wi-Fi: None
  • Bluetooth: None
  • LAN: 2 x 10Gbps, 1 x 1Gbps Dedicated IPMI LAN (Realtek RTL8211E)
  • Audio: None
  • Storage: 1x M.2 PCIe 3.0, 10x SATA III 6Gbps (2 x SATA DOM)
  • Expansion: 2x PCI-E 3.0 x16, 3x PCI-E 3.0 x8

SKU: GEM-S9 Category:


8 to 64-Core Epyc Board

128-Core Epyc Board
